ÀϹÝÇü
Super TorqueÇü
HTDÇü
  ¤ý3M
  ¤ý5M
  ¤ý8M
  ¤ý14M
º§Æ®¼±Á¤¹æ¹ý

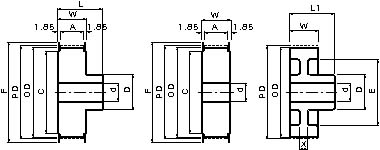

3M TYPE Ç¥ÁØ PULLEY ±Ô°Ý

ȣĪ
6F
33 F
6W
PULLEY
»óÇ°±âÈ£(¿¹)
Çü


»ó

40 - 33M - 0250 - 6F


0
40 - ÀÕ¼ö
(Number of teeth)

033M - BELT ŸÀÔ

00250 - º§Æ®Æø(mm)x10

06F - Çü»ó±âÈ£

ÀÕ¼ö
PD
OD
FLANGE
C
F

10
11
12
14
15

16
18
19
20
21

22
24
25
26
28

30
32
36
40
48

60


9.55
10.50
11.46
13.37
14.32

15.28
17.19
18.14
19.10
20.05

21.01
22.92
23.87
24.83
26.74

28.65
30.56
34.38
38.20
45.84

57.30

8.79
9.74
10.70
12.61
13.56

14.52
16.43
17.38
18.34
19.29

20.25
22.16
23.11
24.07
25.98

27.89
29.80
33.62
37.44
45.07

56.53

13
14
15
17
18

19
21
22
23
24

24
26
27
28
30

32
34
38
42
49

61

6
7
7
9
10

11
12
13
14
15

16
18
18
19
21

23
25
29
33
40

52
